Function
Issue card
Internal card receiving function with a card box or receiving channel
With cards pre-empty and empty detection
Online Inquiry
Inquiry Content：

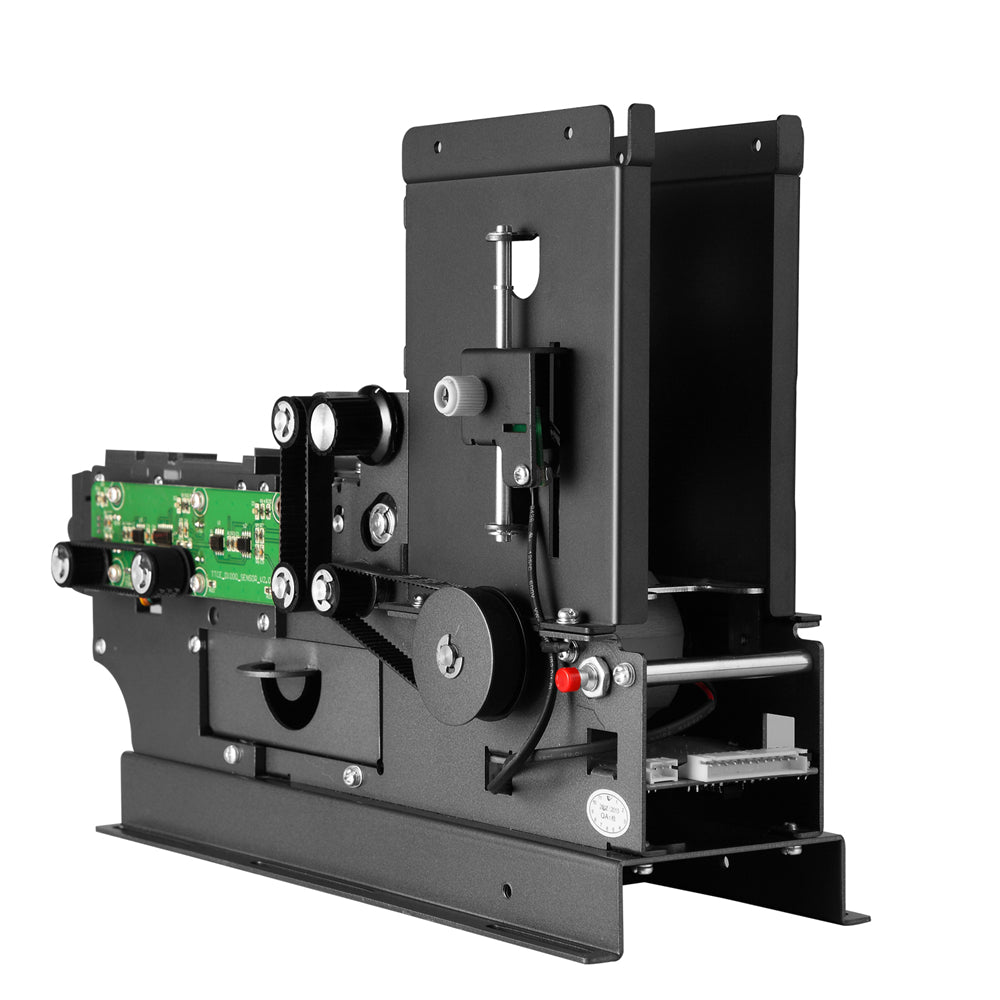

TTCE-D1801
Technical Specifications
Card specification
Material：Paper card and PC card
Width:54 ± 0.5 mm(W) Length : 85 ± 0.5 mm
Thickness: 0.5 ～1.2mm
Power supply
DC24V
Working current
IdIdle:<100mA Peak:<2000mA
Interface
RS232
Card hopper capacity
130 pcs standard cards at thickness of 0.76mm
(Note: stacker capacity can be extended to 300pcs or 400pcs)
Alert Lamp
Card entry alert
Few card alert
power on alert
Environmental conditions
Operation Temp：-5 ℃ to 50℃
Operation Humi：0～90% （Relative Humidity）
Life
Drive parts：500,000cycless
Certified
CE
Weight
About 2.8kg
