Function
Issue card
Internal card receiving function with a card box or receiving channel
IC/RFID card read/write,magnetic card read
With cards pre-empty and empty detection
Online Inquiry
Inquiry Content：

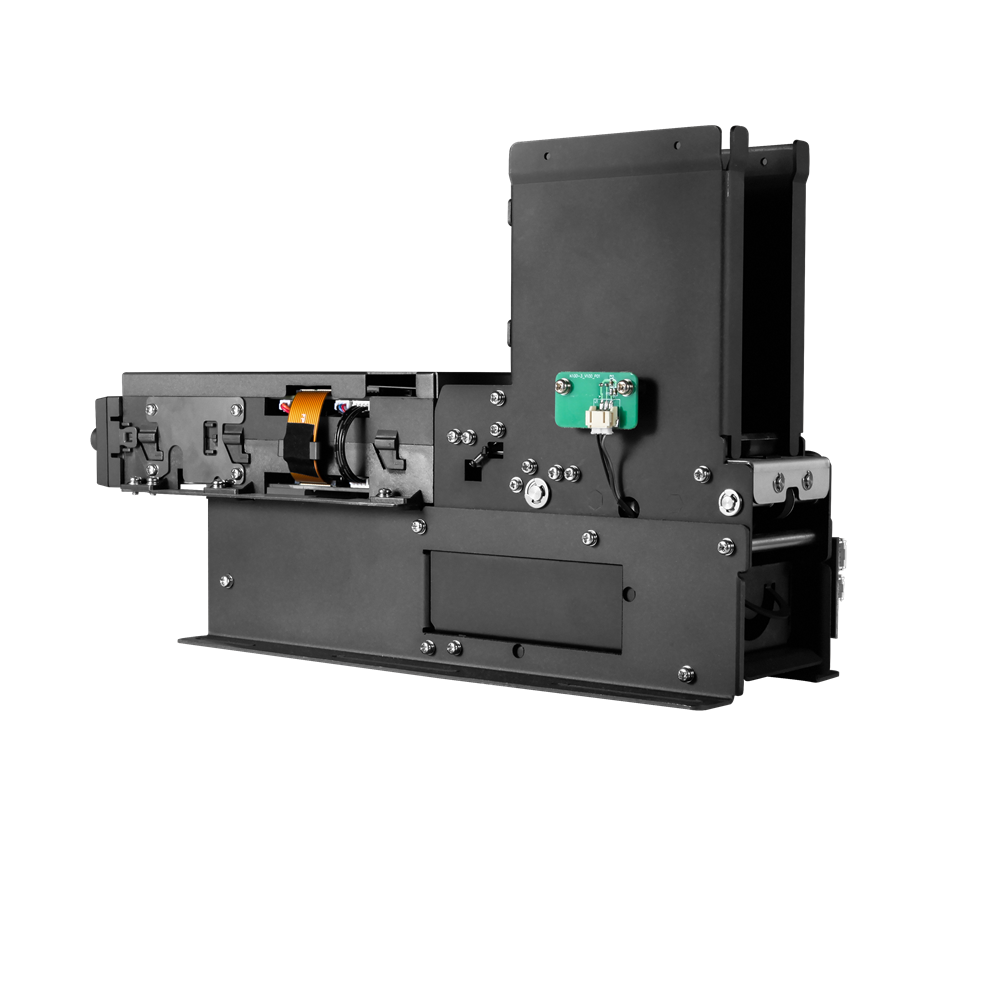

TTCE-K100-M3
Technical Specifications
Cards type
IC card: ISO7816-1、2、3、4 standard
Support T=0,T=1 CPU Card
Support T=0,T=1 PSAM Card
Contactless card：ISO/IEC 14443 Type A & Type B
Support Mifare 1 S50,S70,UL card,Mifare Plus,Mifare Desfire
Magnetic card:ISO7810，ISO7811 －(1-6)，ISO7812，ISO7813 And ISO15457
Card specification
Material：Paper card and PC card
Width:54 ± 0.5 mm(W) Length : 85 ± 0.5 mm
Thickness: 0.7 ～0.9mm
Power supply
DC24V
Operation current
Idle:<100mAPeak:<4000mA
Interface
RS232/USB
Card hopper capacity
130 pcs standard cards at thickness of 0.76mm
(Note: stacker capacity can be extended to 200pcs or 300pcs)
Alert Lamp
Card entry alert
Few card alert
power on alert
IC card power on alert
Environmental conditions
Operation Temp：0 ℃ to 45℃
Operation Humi：30～90% （Relative Humidity）
Life
Drive parts：500,000cycles
Magnetic head：800,000cycles
IC card contact：300,000cycles
Certified
Weight
About 2.2KG
