Function
Issue card
Internal card receiving function with a card box or receiving channel
RFID card read/write
With cards pre-empty and empty detection
Online Inquiry
Inquiry Content：

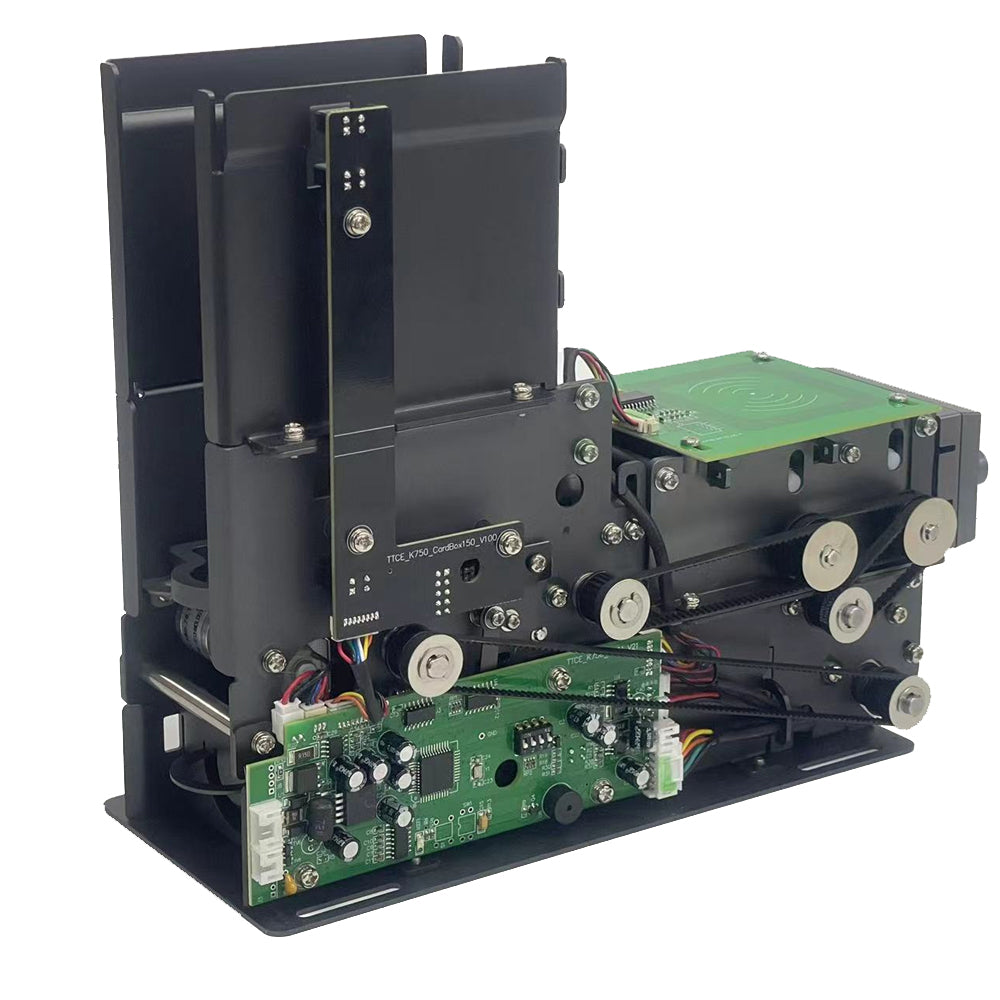

TTCE-K750-B
Technical Specifications
Cards type
Contactless card：ISO/IEC 14443 15693 Type A & Type B
Support Mifare 1 S50,S70,UL card,Mifare Plus,Mifare Desfire
Card specification
Material：Paper card and PC card
Width:54 ± 0.5 mm(W) Length : 85 ± 0.5 mm
Thickness: 0.7 ～1.0mm
Power supply
DC24V
Working current
IdIdle:<100mA Peak:<2000mA
Interface
RS232
Card hopper capacity
50 pcs standard cards at thickness of 0.76mm
(Note: stacker capacity can be extended to 100pcs or 150pcs or 200pcs)
Alert Lamp
Card entry alert
Few card alert
power on alert
Environmental conditions
Operation Temp：0℃ to 50℃
Operation Humi：30～90% （Relative Humidity）
Life
Drive parts：500,000cycless
Certified
CE
Weight
About 2.0kg
