Function
IC/RFID/Magnetic card read/write
Online Inquiry
Inquiry Content：

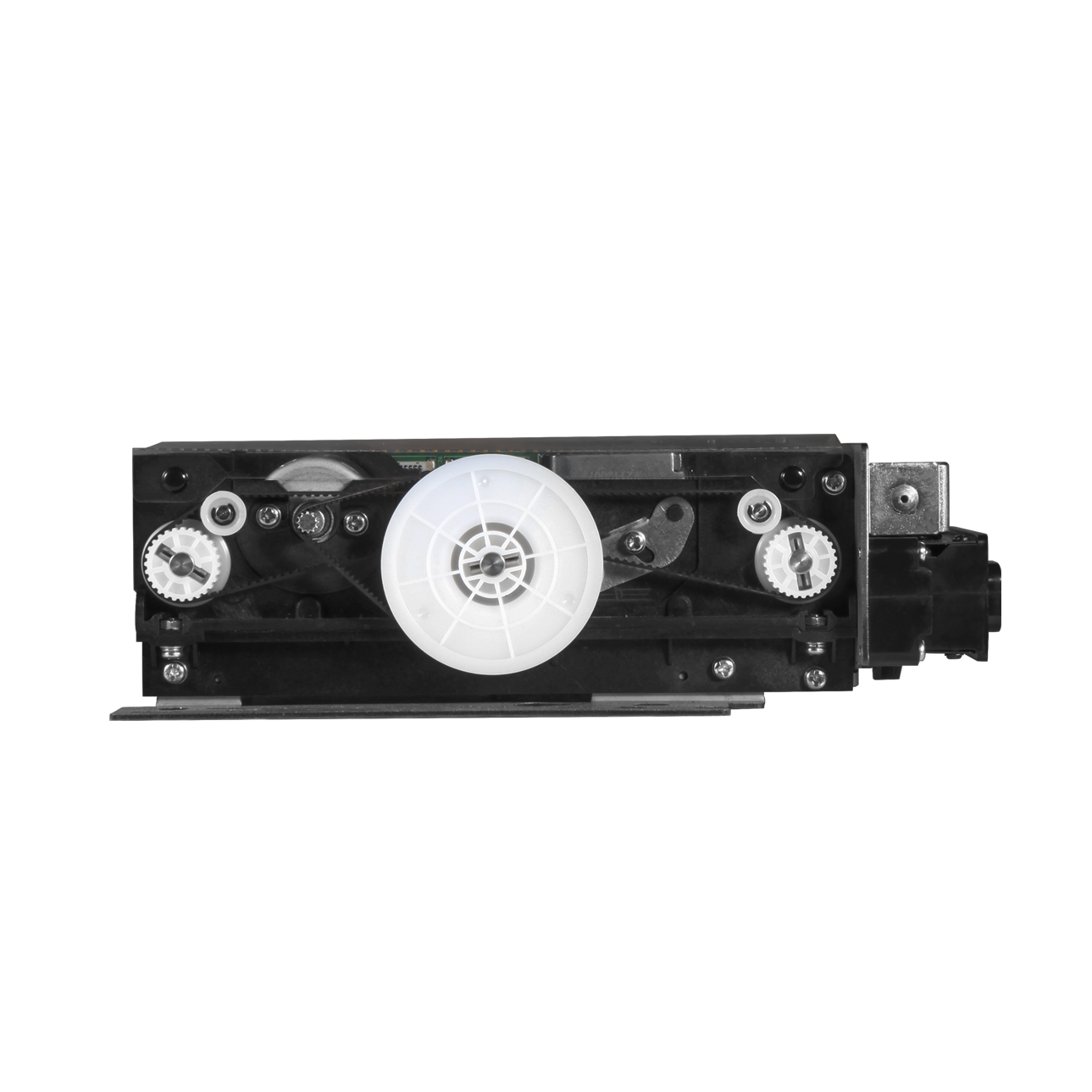

TTCE-M800
Technical Specifications
Cards type
IC card: ISO7816-1、2、3、4 standard
Support T=0,T=1 CPU Card
Support T=0,T=1 PSAM Card
Contactless card：ISO/IEC 14443 Type A & Type B
Support Mifare 1 S50,S70,UL card,Mifare Plus,Mifare Desfire
Magnetic card:ISO7810，ISO7811 －(1-6)，ISO7812，ISO7813 And ISO15457
Card specification
Material：Paper card and PC card
Width:53.92～54.18 mm(W) Length : 85.47～85.9 mm
Thickness: 0.76 ～0.9 mm
Power supply
DC24V
Operation current
Idle:<200mAPeak:<3000mA
Interface
RS232/USB
Environmental conditions
Operation Temp：0 ℃ to 50℃
Operation Humi：20～80% （Relative Humidity）
Life time
Drive parts：1200,000cycles
Magnetic head：1000,000cycles
IC card contact：1000,000cycles
Certified
EMVCO/PBOC
Weight
About 1.0kg
